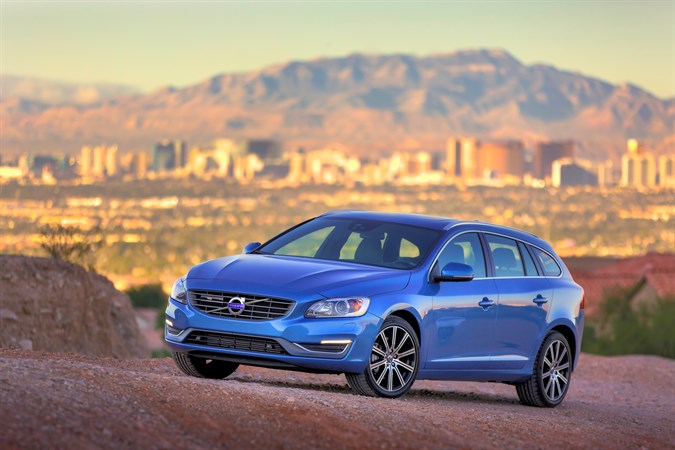

Volvo V60 Model Year 2016

28 April 2015

The Volvo V60 is the car for people who need the versatility of an estate but want the handling of a sports sedan - all in a stylish Scandinavian package.

The 2016 V60 is available with full range of engines from Volvo Cars’ four-cylinder Drive-E powertrain family. Fuel consumption in a V60 D2 with 120 hp and manual gearbox is down to 3.7 l/100 km, translating into CO2 emissions at 98 g/km.

DESIGN

Accentuated road presence
As with the Volvo S60, the design team has accentuated V60's road presence by emphasising its horizontal lines, which visually connects the car directly to the road. The V60's silhouette is a visual reminder that this is no ordinary estate - it's a wagon with a coupé-like appearance.

To enhance the visual appeal of the car, it is possible to specify the V60 with expressive 19-inch wheels and keep the same profile height as 18-inch ones, without compromising comfort.

Model year 2016 updates include new wheels (17”, 18” and 19”) and three new exterior colours: Magic Blue, Osmium Grey and Onyx Black.

Refined interior
Scandinavian design is exemplified by beautiful, simple shapes and surfaces with any unnecessary clutter removed. This is evident in the V60 interior and exterior. Inside, the attention to detail, the authentic materials - such as wood and leather - and the easy-to-use controls contribute to the in-command driving experience. The interior detailing includes a Piano Black deco option, rotary jewel-like knobs in the centre stack and a frameless inner rear-view mirror.

At the heart of the extra versatility of the V60 is its intelligent seating. The rear seats can be folded down in three 40/20/40 segments, so that the rear 430 litres of load space can be supplemented quickly and easily. Parents favour the V60's two-stage integrated booster cushions for children. With one simple movement, the booster cushions pop-up from the seat base giving a comfortable and safe ride height for children from three years and upwards.

Comfortable sport seat
Supportive yet comfortable seats that ensure a fresh and relaxed arrival after the longest of journeys have been one of Volvo strengths for decades. The buyer of the V60 can specify a sport seat that retains this traditional comfort and makes a perfect addition to the in-command feel of a true driver's car. It has great hugging side support all the way from the thighs to the shoulders, so the seat keeps the driver firmly in position when cornering at speed.

R-DESIGN

Unique new front
The V60 R-Design features a unique face with a dynamic, expressive nose. The DRL lights in the outer corners reinforce the low, road-hugging impression. At the rear, the unique diffuser with aero fins is flanked by the round, high-tech R-Design tailpipes. The R-Design version is now available with 19" wheels.

R-Design interior
The sport seat comes as standard in the V60 R-Design. It features a blend of black nubuck textile and perforated leather. By blending inlays with a perforated look, black leather and contrasting stitching, the design team has created an R-design interior with all the details in perfect harmony, crowned by the black headliner.

VOLVO OCEAN RACE EDITION

Sailing-inspired cars
The V60 is also available in a sailing-inspired Volvo Ocean Race Edition. The model is available in four colours – Ocean Blue II (new colour), Bright Silver, Crystal White and Onyx Black and features the seven-spoke, 18-inch ‘Portunus’ wheel.

The Volvo Ocean Race identification is displayed on the tread plates and front fenders as well as in the start-up sequence on the Infotainment screen. The interior features black or blond leather upholstery with orange stitching and the Volvo Ocean Race logo in orange. The stitching is echoed on the door panels and floor mats, which also have a special rubber tag attached. There is a unique deco inlay, and the load cover is decorated with a Volvo Ocean Race map and logo.

CHASSIS & POWER TRAINS

Four chassis choices
The V60 delivers a dynamic driving experience, with the same pin-sharp handling as its sister saloon and with the same chassis options and the same levels of customer preference - Touring, Dynamic, Four-C (Continuously Controlled Chassis Concept) and R-Design Sport Chassis.

Powerful all-new T6
At the top of the Drive-E offer is the T6 with an output of 306 hp and 400 Nm of torque. The engine features a class-leading combination of a compressor and a turbo charger. Using the supercharger to fill in the bottom end gives the engine a big, naturally aspirated feel. The mechanically linked compressor starts to function immediately at low revs, while the turbocharger kicks in when the airflow builds up. Fuel consumption with new 8-speed automatic is 6.7 l/100 km (157 g/km) in the V60.

T5 with 245 hp
The four-cylinder Drive-E engine T5 has 245 hp and 350 Nm of torque. Fuel consumption with 8-speed automatic is 6.4 l/100 km (149 g/km) in the V60.
The V60 is now also available with the Drive-E engines T4 (190 hp) and T3 (152 hp). Fuel consumption in the V60 T3 with manual gearbox is 5.8 l/100 km (135 g/km).

New D5 with 225 hp
The extended V60 Drive-E engine range includes the four-cylinder D5 twin turbo diesel with 225 hp, 470 Nm of torque and fuel consumption of 4.8 l/100 km with the 8-speed automatic.

All-new D4 with 101 g/km
The D4 Drive-E turbo diesel now comes with 190 hp and 400 Nm of torque. The engine features world-first i-ART technology that helps to cut fuel consumption. By featuring pressure feedback from each fuel injector instead of using a traditional single pressure sensor in the common rail, i-ART makes it possible to continuously monitor and adapt fuel injection per combustion in each of the four cylinders. Fuel consumption in a V60 D4 with manual gearbox is down to a class-leading 3.8 l/100 km, translating into CO2 emissions at 101 g/km. Fuel consumption with new 8-speed automatic is 4.3 l/100 km (112 g/km).

There is a 2.4-litre, five-cylinder engine version for the V60 D4 AWD, featuring 190 hp and 420 Nm of torque. Fuel consumption with automatic gearbox is 5.5 l/100 km (146 g/km).

New 2.0-litre D3 and D2 Drive-E
The V60 can also be equipped with the new four-cylinder Drive-E diesel D3 with 150 hp/320Nm and a new D2 with 120 hp/280 Nm. The V60 D2 with manual gearbox comes with fuel consumption at 3.7 l/100 km (EU Combined), corresponding to CO2 emissions at 98 g/km.

SENSUS

Adaptive Digital Display
The Adaptive Digital Display uses an active TFT (Thin Film Transistor) crystal display to bring the driver personalised information. There are three themes to choose from: Elegance, Eco and Performance.

Sensus Connect
The Digital Display theme colours are also echoed in the connected infotainment system Sensus Connect. It features a refreshed user interface with a number of innovative functions offering customers a fully connected experience.

The cloud-based services allow the driver to find and pay for parking from the car, discover new restaurants at the destination, stream favourite music seamlessly and much more. The driver can also have text messages read out aloud without taking hands off the wheel.

The brand new app Connected Service Booking is only the first step in making the dealer workshop fully integrated into the digital eco-system. The car will not only tell the driver when it’s time for service but also suggest an appointment at the Volvo dealership.

The Bluetooth mobile phone service allows hands-free phone conversations as well as music streaming from a preferred Bluetooth enabled portable music player.

Sensus - always on call
One of the most widely appreciated features related to the Sensus offer, Volvo On Call, allows Volvo drivers to communicate directly with their car via a smartphone application to lock, unlock, check fuel levels, pre-heat, pre-cool, locate and check mileage on the car.

For 2015 Volvo On Call will be updated, adding a completely new graphical user interface, enhanced send to car capabilities, diagnostics views and smartwatch support for Android Wear, Apple Watch, iPad support and also voice control via Cortana for Windows Phone.

Premium Sound system
The Sensus family also includes a top-of-the-line Premium Sound system with a 5x130W amplifier with the next-generation sound enhancement software Dirac Live and up to 12 loudspeakers, including a long-throw woofer for enhanced bass, soft dome tweeters for soft highs and large mid-range centre and door speakers.

With the Premium Sound system by Harman Kardon the driver can enjoy an immersive sound stage with improved bass performance, while being able to turn up the volume with full audio clarity.

Heated steering wheel and paddle shifters
To give drivers in cold climate extra comfort, three-spoke steering wheels can be specified with electric heating. Cars with automatic transmission can get paddle shifters that give the driver the opportunity to shift gear manually with both hands on the wheel. Cars equipped with a rain sensor can now also get an electrically heated windscreen for rapid de-icing on cold winter days.

SAFETY AND SUPPORT

IntelliSafe, Volvo's blanket name for all active safety systems, is an important part of the driver-centric approach in the V60.

Electrical Power Assist Steering
The Electrical Power Assist Steering (EPAS), available with the Drive-E engines, uses an electrical motor to support the steering rack, and the driver can choose between three levels of power assistance.

In Low mode the system provides a high degree of power support, making manoeuvring easier. Medium mode has somewhat lower power support to offer more road response at higher speeds. High mode is the ultimate setting for the enthusiastic driver, contributing to the car’s dynamic character.

Permanent high beam with groundbreaking technology
The Active High Beam Control eliminates the need to switch between low and high beam. Instead, Active High Beam Control makes it possible keep the headlights on high beam continuously.

When another car approaches from the opposite direction, the system helps to prevent dazzling of the oncoming driver by shading out only as much of the beam as necessary. This is done by an ingenious projector module mechanism integrated into the headlamp. The same benefit applies to drivers in preceding cars.

Pedestrian and Cyclist Detection technology
New advanced software, including more rapid vision processing made it possible to extend Volvo Cars' detection and auto brake technology to cover certain cyclist situations as well.

The Pedestrian and Cyclist Detection with full auto brake is equipped with an advanced sensor system that scans the area ahead. If a cyclist heading in the same direction as the car suddenly swerves out in front of the car as it approaches from behind and collision is imminent, there is an instant warning and full braking power is applied.

The technology also detects if a pedestrian steps out into the road in front of the car. If the driver does not respond in time, the car can warn and automatically activate the brakes.

City Safety - active up to 50 km/h
The V60 features a City Safety system that is active at speeds up to 50 km/h. The car automatically brakes if the driver fails to react in time when the vehicle in front slows down or stops - or if the car is approaching a stationary vehicle too fast.

Cornering Light for better visibility
Another innovative option for driving in the dark is the low-speed Cornering Light feature. As an extension of the current Active Bending Light system, it lights up the area the driver is steering towards for safer manoeuvring.

Park Assist Pilot
Park Assist Pilot makes parallel parking easy and precise by taking over and operating the steering wheel while the driver handles the gearbox and controls the car’s speed. The parking manoeuvre is based on front, rear and side-facing ultrasonic sensors.

Lane Keeping Aid
Lane Keeping Aid helps the driver stay in the lane. This feature applies extra steering torque to the steering column when the car gets close to a lane marking and is about to leave the lane. The system is active at speeds between 65 km/h and 200 km/h. As a first step, Lane Keeping Aid applies gentle steering wheel torque to help the driver steer back onto the intended course. If the car leaves the lane, the technology generates a distinctive warning through a haptic vibration in the steering wheel.

Blind Spot Information System - for better visibility
The V60 offers the radar-based Blind Sport Information System (BLIS. The technology can monitor and alert the driver to rapidly approaching vehicles up to 70 m behind the car. Of course it still informs the driver about vehicles in the blind spots on both sides.

Cross Traffic Alert - covering your back
Cross Traffic Alert uses the radar sensors at the rear end of the car to alert the driver to crossing traffic from the sides when reversing out of a parking space. This is especially helpful in tight and crowded areas where the side view might be limited due to infrastructure, vegetation or other parked cars.

Road Sign Information - an extra "eye" on the traffic environment
Road Sign Information supports the driver by displaying road signs in the instrument display. Road Sign Information can be combined with the Speed Alert function, which provides the driver with a visual warning in the speedometer if the speed limit is exceeded.

---
