| While efforts have been made to assure 100% accuracy, some of the information pre-sented here may be incorrect due to late product changes and/or specification changes which may have occurred. Production specifications are subject to change without notice.
Key New Product Features
V70
MY02
Volvo will be introducing new features, models, and revise model content to augment our current V70 offer and to help maintain our leadership role in the segment. A strong emphasis was also placed on aligning our option package across the model line in name and content to simplify the offer for both customer and retailer. Below you will find "What's New" with the V70 for MY02. V70 AWD Beginning in MY02, Volvo will introduce All Wheel Drive (AWD) on the V70 as a Customer Order Only. It is an accommodation for those customers who enjoy the clean lines of a V70, yet want the added safety and traction benefits of AWD.  | | THOR - OPTION |  | | ORBIT - STD | - The AWD system employed on the V70 AWD will be the same as that on the Cross Country.
Under normal road conditions the system will split the power in a 95/5 front to rear ratio. Power, upon demand, will transfer to the rear axle via a viscous clutch. The transfer in this system is transparent to the customer and their awareness that the system is operating is only from the light in the instrument cluster. - The AWD system has been supplemented with four wheel TRACS. Unlike its predecessor that used a locking rear differential to control rear wheel spin, TRACS is used to modulate the ABS braking system when wheel spin is detected through the ABS sensors. So, if the right set of wheels begins to lose traction, those wheels will be braked to recover traction while the left set of wheels propels the vehicle. Activation of 4-Wheel TRACS occurs from starting speeds up to 25 MPH. The advantage in this system is the intervention of 4-Wheel TRACS is very balanced.
- Ground clearance is slightly increased by 0.5 inches over the V70.
- 5 speed Automatic with Geartronic will be standard for the V70 AWD, as it is on the Cross Country.
- The V70 AWD will feature exclusive 16" (ORBIT - Standard) and 17" (THOR - Option) Wheels to help distinguish it from the other V70s.
Platform Introductions - Improved throttle management for 5 cylinder turbos. The V70 will be discernibly more responsive when the accelerator is depressed which enhance the level of driving pleasure. The function is designed in a way that the driving is smooth without sac-rificing low speed performance.
Mk 25 Brake System - STC Improvements – improved engine intervention due to a more powerful processor and new algorithms
- Traction Control in STC and TRACS has been improved by increasing the speed range of the system. It will regulate the system up to 75 MPH (previously 44 MPH) but has to enter the traction control mode at a speed lower than 25 MPH.
- DSTC availability with AWD – Available Dec. 10th / W150 Production
- Emergency Brake Assistance (EBA) – dramatically reduces stopping distances in panic situations. At these critical moments, there is sometimes the tendency to relax pressure off the brake pedal once ABS modulation occurs. EBA ensures that full brak-ing power is applied.
Packages As stated above, V70 packages have been revised to align more closely with the content and nomenclature of the rest of the Volvo lineup. The benefit of this rationalization is to provide product continuity between models and the enhancement of communication between the retailer and customer. As such, two new packages have been developed using similar logic in content with the S60. - Premium Package: Consists of high customer demand features of Leather Upholstery, Leather Wrapped Steering Wheel, Simulated Wood Inlays, In-dash CD Player, Power Seat (Driver-2.4; Passenger-2.4T/AWD)
Note: Sunroof is included in the package for 2.4 models only. - Versatility Package: Consists of the 3rd Row Seat, Integrated Booster, Foldable Table, and Trash Bin.
Standard Content Safety and content alignment with the S60 were the focus for any changes to the standard specification. The key inclusion to the standard equipment was STC on 2.4 and 2.4T, and DSTC on T5. Below is the full list of standard equipment additions for each variant. 2.4 - STC
- Cargo Security Cover (W150 Production – Dec. 10th)
2.4T
- STC
- Cargo Security Cover
- Leather Gearshift Knob
- "MIMAS" 6 spoke Alloy Wheels
- Sunroof
T5
- DSTC
- Cargo Security Cover
- Leather Gearshift
- Leather Handbrake (W150 Production – Dec. 10th)
- Aluminum Mesh Inlays
- Vinyl / Cloth Standard Upholstery
- Sunroof
Sunroof: To alleviate customer and dealer confusion, beginning from start of production, Sunroof will now be standard on all 2.4T, 2.4T AWD & T5 variants. The Premium Packages have been adjusted to reflect this change. The sunroof will continue to be an option (and included in the premium package) on the 2.4
In addition to the above additions to the standard content, two items were removed and have been offered in option packages. They are:
- Dash Cupholder deleted as standard equipment – Added to Touring Package
- Rear Trash Bin deleted as standard equipment – Added to Versatility Package
New Feature Introductions
DVD Volvo Navigation System
- The Volvo Navigation System made its debut in the MY99 S80, and since it has been incorporated on most P2 vehicles. While a convenient and worthwhile option for many, improvements have been made to the CD-based system to improve customer satisfaction and ease of operation.
- The Volvo Navigation System (VNS) is an electronic information and route guidance system that helps the driver find any destination under a variety of options (e.g. shortest route, fastest time, use of highways and toll roads). The system keeps track of the posi-tion of the vehicle using the Global Positioning Satellite (GPS) system and automatically recalculates the route if the driver goes off the system’s plan.
- The most significant improvement of VNS was the incorporation of DVD media. The previous generation VNS used CD-ROM media to store maps and data. The advan-tages of using DVD media are storage capacity and speed. CD-ROM based VNS would require 9 separate CDs to provide coverage in the continental United States, whereas with the DVD format, only one disc is necessary for the United States and Canada.
- Route calculation, Data retrieval, and rerouting speeds are significantly enhanced ver-sus the CD-ROM system.
- The size of the VNS display has increased by 1", measuring 6.5 inches. This color, wide screen unit is situated at eye level so it can be read easily and quickly. When not is use the display hides discretely inside the center speaker on the dashboard.
- In addition to the steering wheel mounted controls, a hand held remote will be included with every VNS ordered as a factory option. This remote allows passengers access to the system without having to distract the driver.
Premium Sound System Upgrade (Option) - As a factory or retailer installed option, the V70 T5and XC will receive the Audio Max system found on the S60. This represents a larger, external amplifier (4x75W vs. 4x50W); the premium speakers found on the S60; and the front door speaker arrangement (3 speakers vs. 2). As such, T5s ordered with the Audio Max System will have a different door panel (c/o the S60).
Interior Changes
“Tistlarna” Vinyl / Cloth Standard Upholstery – T5 only
- New Exterior Color Offer: Cosmos Blue (T5 Only)
Note: Midnight Blue –604 will be known as “North Sea Blue” for MY02. Only the name has changed for marketing purposes-the color or pigment has not changed. - Leather Handbrake will feature a visible seam on the top of the lever (as of W150, De-cember 10th Production)
- Interior Switch for Fuel Lid – An interior switch will be added to 2.4T, AWD, and T5 models. Eventually, 2.4 models will receive switch as a running change this year. The switch turns off a diagnostic system that detects evaporation of fuel vapor. It is expected that this switch will help mitigate false reads and incorrect illumination of check engine lights. The fuel lid will automatically relock should the vehicle exceed 4 MPH.

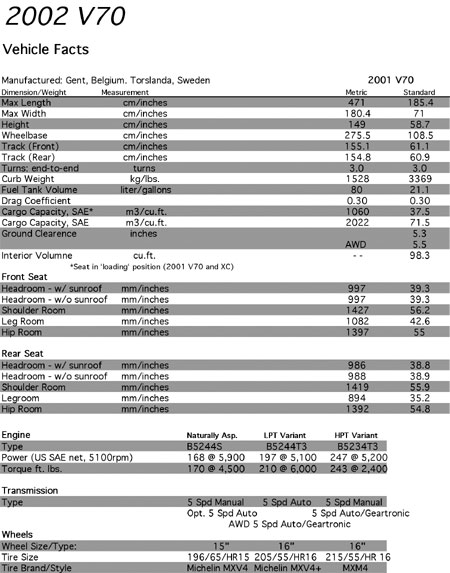

SPECIFICATION OVERVIEW
V70
Model Year 2002
SALES VERSION
V70 2.4 Badge “V70”
5 cylinder, 168 HP with 170 lb. / ft. of Torque
5 Speed Manual Transmission
SIPS Structure with Side Impact Air Bags
Dual Stage Front Air Bags
IC (Inflatable Curtain)
WHIPS – Whiplash Protection Seats
ISO-FIX Baby/Child Seat Attachment System
Dual Zone Manual Climate Control
B-Pillar Rear Seat Vents
Central Locking System with Keyless Two-Step Unlock / Entry
Security System with Battery Back-up Siren
Exterior “Approach Lighting”, (including mirror puddle lamps)
Cargo Security Cover (W150 - Dec. 10th Production)
“Kullen” Cloth Upholstery
Manually Adjusted Driver and Passenger Seats
60/40 Split, Fold-down Rear Seats
Two Center Console Integrated Cup Holders
Two Integrated Cup Holders, Rear Armrest
Auto-down/up Front Window
Power Heated Exterior Mirrors
Tilt/Telescoping Steering Wheel w/ Integrated Audio/Cruise Controls
Plush Floor Mats
Immobilizer – Rolling Code Theft Deterrent System
HU-413 Full Logic Cassette, AM/FM Stereo, w/CD Changer Control
Six Speaker Base System
Pollen filter for passenger compartment
Comfort Chassis
15”x 6 _” “LYSETHIA” 10 Spoke Alloy Wheels
195/65HR 15 All-Season, MXV4+ Michelin Tires Bold Type indicates New Features SPECIFICATION OVERVIEW
V70
Model Year 2002
SALES VERSION
V70 2.4T Badge “V70 2.4T”
5 cylinder, 197 hp with 210 lb. / ft. of Torque
Light Pressure, Intercooled Turbo
5 Speed Automatic Transmission
SIPS Structure with Side Impact Air Bags
Dual Stage Front Air Bags
IC (Inflatable Curtain)
WHIPS – Whiplash Protection Seats
ISO-FIX Baby/Child Seat Attachment System
Power Glass Sunroof
Electronic Climate Control
B-Pillar Rear Seat Vents
Central Locking System with Keyless Two-Step Unlock / Entry
Security System with Battery Back-up Siren
Exterior “Approach Lighting”, (including mirror puddle lamps)
Cargo Security Cover
Leather Gear Knob
“Kullen” Cloth Upholstery
Power 8-Way Adjustable Driver’s Seat w/ 3 memory settings
Manually Adjusted Passenger Seat
60/40 Split, Fold-down Rear Seats
Two Center Console Integrated Cup Holders
Two Integrated Cup Holders, Rear Armrest
Auto-down/up Front Window
Power Heated Exterior Mirrors with memory
Tilt/Telescoping Steering Wheel w/ Integrated Audio/Cruise Controls
Plush Floor Mats
Immobilizer – Rolling Code Theft Deterrent System
HU-413 Full Logic Cassette, AM/FM Stereo, w/CD Changer Control
Six Speaker Base System
Automatic Time Lock Fuel Lid
Pollen filter for passenger compartment
Comfort Chassis
16” x 6.5” “MIMAS” 7 Spoke Alloy Wheels
205/55 HR 16 All-Season, MXV4 Michelin Tires
Bold Type indicates New Features
SPECIFICATION OVERVIEW
V70
Model Year 2002
SALES VERSION
V70 AWD Customer Order Only
Badge “V70 AWD”
5 cylinder, 197 hp with 210 lb. / ft. of Torque
Light Pressure, Intercooled Turbo
5 Speed Automatic Transmission w/ Geartronic
AWD with 4 Wheel TRACS
SIPS Structure with Side Impact Air Bags
Power Glass Sunroof
Dual Stage Front Air Bags
IC (Inflatable Curtain)
WHIPS – Whiplash Protection Seats
ISO-FIX Baby/Child Seat Attachment System
Electronic Climate Control
B-Pillar Rear Seat Vents
Central Locking System with Keyless Two-Step Unlock / Entry
Security System with Battery Back-up Siren
Exterior “Approach Lighting”, (including mirror puddle lamps)
Cargo Security Cover
Leather Gear Knob
“Kullen” Cloth Upholstery
Power 8-Way Adjustable Driver’s Seat w/ 3 memory settings
Manually Adjusted Passenger Seat
60/40 Split, Fold-down Rear Seats
Two Center Console Integrated Cup Holders
Two Integrated Cup Holders, Rear Armrest
Auto-down/up Front Window
Power Heated Exterior Mirrors with memory
Tilt/Telescoping Steering Wheel w/ Integrated Audio/Cruise Controls
Immobilizer – Rolling Code Theft Deterrent System
HU-413 Full Logic Cassette, AM/FM Stereo, w/CD Changer Control
Six Speaker Base System
Automatic Time Lock Fuel Lid
Pollen filter for passenger compartment
Comfort Chassis
16” x 6.5” “ORBIT” 7 Spoke Alloy Wheels
205/55 HR 16 All-Season, MXV4+ Michelin Tires SPECIFICATION OVERVIEW
V70
Model Year 2002
SALES VERSION
V70 T5 Badge “V70 T5”
5 cylinder, 247 hp with 243 lb. / ft. of Torque
High Pressure, Intercooled Turbo
5 Speed Manual Transmission
SIPS Structure with Side Impact Air Bags
Dual Stage Front Air Bags
IC (Inflatable Curtain)
WHIPS – Whiplash Protection Seats
ISO-FIX Baby/Child Seat Attachment System
Power Glass Sunroof
Electronic Climate Control
B-Pillar Rear Seat Vents
Trip Computer
Central Locking System with Keyless Two-Step Unlock / Entry
Security System with Battery Back-up Siren
Exterior “Approach Lighting”, (including mirror puddle lamps)
Homelink® Garage Door & Remote Lighting System
Immobilizer – Rolling Code Theft Deterrent System
DSTC (Dynamic Stability Traction Control)
Cargo Security Cover
Leather Gear Knob
Aluminum Mesh Inlays
Leather Hand Brake (Starting with Dec. 10th Production)
“Tistlarna” Cloth / Vinyl Upholstery
Power 8-Way Adj. Driver/Passenger Seat w/ 3 memory settings
60/40 Split, Fold-down Rear Seats
Two Center Console Integrated Cup Holders
Two Integrated Cup Holders, Rear Armrest
Auto-down/up Front Window
Power Heated Exterior Mirrors with memory
Spoiler Mounted Front Fog Lights
Auto Dimming Interior Rearview Mirror
Color Coordinated, Tilt/Telescoping, Leather Wrapped Steering
Wheel w/ Integrated Audio/Cruise Controls
HU-613 Single CD, Full Logic Cassette, AM/FM Stereo, w/CD
Changer Control, Eight Speaker Base System
Automatic Time Lock Fuel Lid
Pollen filter for passenger compartment
16”x 7” “METIS” 7-spoke Alloy Wheels
215/55 HR 16 All-Season, MXM4 Michelin Tires Bold Type indicates New Features STANDARD/OPTIONAL EQUIPMENT
V70
Model Year 2002 | DRIVETRAIN | 2.4 | 2.4T | AWD | T5 | | B5244S, ULEV Engine: Transversely Mounted, 2.4 liter, Naturally Aspirated, All Alloy, 5 Cylinder, DOHC 20 Valve (Solid Tappets), Bosch ME7 Engine Management System. 168 HP at 5,900 RPM, 170 lb./ft @ 4,500 RPM | S | N/A | N/A | N/A | | B5244T3, LEV Engine: Transversely Mounted, 2.4 liter, Light-pressure Turbocharged and Intercooled, All Alloy, 5 Cylinder, DOHC 20 Valve (Solid Tappets), Bosch ME7 Engine Management System. 197 HP at 6,000 RPM, 210 lb./ft @ 1,800 –5,000 RPM | N/A | S | S | N/A | | B5234T3, LEV Engine: Transversely Mounted, 2.3 liter, High-pressure Turbocharged and Intercooled, All Alloy, 5 Cylinder DOHC 20 Valve (Solid tappets), Bosch ME7 Engine Management System. 247 HP at 5,200 RPM, 243 lb./ft @ 2,400-5,200 RPM | N/A | N/A | N/A | S | | AWD-All Wheel Drive – via Viscous Coupling | N/A | N/A | S | N/A | | M56H 5-Speed Manual Gearbox | S | N/A | N/A | N/A | | M56L 5-speed Manual Gearbox | N/A | N/A | N/A | S | | AW55-50 5-speed, Microprocessor-Controlled Automatic with Winter Mode Selector Switch. | O | S | N/A | N/A | | AW55-50 5-speed, Microprocessor-Controlled Automatic with Geartronic and Winter Mode Selector Switch. | N/A | O | S | O | | PremAir® Treated Radiator | S | S | S | S | | BRAKES AND SUSPENSION | | | | | | Power Assisted, 4 Wheel Disc Brakes | S | S | S | S | | 4 Channel, Anti-lock Braking System (ABS), Electronically Controlled (Continental/Teves) w/ Electronic Brake Distribution (EBD) and Emergency Brake Assistance (EBA) | S | S | S | S | | 15” Wheel Brake System (11.3” Front/Rear discs, 286 mm /288 mm) with Asbestos Free Brake Pads. | S | S | S | N/A | | 16” Wheel Brake System (12”/11.3” Front/Rear Discs, 305 mm /288 mm) with Asbestos Free Brake Pads. | N/A | N/A | N/A | S | | Rack and Pinion Steering | S | S | S | S | | Independent Front McPherson Strut Suspension with: Hydraulic Shocks, 23 mm Stabilizer Bar and Asymmetrically Mounted Front Springs | S | S | S | S | | Multi Link Rear Suspension with: Hydraulic Shock Absorbers, 19 mm stabilizer bar and Coil Spring | S | S | S | S | | 4 Wheel TRACS – Traction Control | N/A | N/A | S | N/A | | Stability and Traction Control (STC) | S | S | N/A | N/A | | Dynamic Stability and Traction Control (DSTC) | N/A | O W150 | O W150 | S | | 15” x 6.5” LYSITHEA Alloy Wheels (43 mm Offset) with Michelin MXV4+ 195/65/HR15 All Season Radial Tires | S | N/A | N/A | N/A | | 16” x 6.5 “ MIMAS Alloy Wheels (43 mm Offset) with Michelin MXV4+ 205/55 HR 16 All-Season, Radial Tires | O | S | N/A | N/A | | 16” x 6.5 “ ORBIT Alloy Wheels (43 mm Offset) with Michelin MXV4+ 205/55 HR 16 All-Season, Radial Tires | N/A | N/A | S | N/A | | 16” x 7“ METIS Alloy Wheels (49 mm offset) with Michelin MXM4 215/55 HR 16 All-Season, Radial Tires | N/A | O | N/A | S | | 17” x 7.5” THOR Alloy Wheels with Pirelli P6 235/45/HR 17 All-Season Tires | N/A | N/A | O | N/A | | 17” x 7.5” AMALTHEA Alloy Wheels with Pirelli P6 235/45/HR 17 All-Season Tires | N/A | O | N/A | O | | Tempa Spare tire | S | S | S | S | | BODY AND INTERIOR | 2.4 | 2.4T | AWD | T5 | | Interior Courtesy Lights with Delay "Dim Down" and “Auto Brighten-Up” | S | S | S | S | | 4 Reading Lights, 2 Front / 2 Rear | S | S | S | S | | 2 Foot-Well Door Entry Lights | S | S | S | S | | Illuminated Front Driver and Passenger Vanity Mirror | S | S | S | S | | Luggage Compartment Light | S | S | S | S | | Cruise Control | S | S | S | S | | Replaceable Pollen / Dust Filter for Interior | S | S | S | S | | Dual Zone Manually Controlled Climate System | S | N/A | N/A | N/A | | Dual Zone Electronically Controlled Climate System (ECC) | N/A | S | S | S | | B-Pillar Adjustable Rear Seat Vents | S | S | S | S | | Interior Air Quality Sensor (IAQS) | N/A | O | O | O | | Leather Wrapped Gearshift Knob | N/A | S | S | S | | Leather Wrapped Steering wheel. | N/A | O | O | S | | Leather Hand Brake (Dec. 10th Production) | N/A | N/A | N/A | S | | Wood Effect – Simulated Red Wood Trim for Glovebox and Front/Rear Door Trim | N/A | O | O | N/A | | Aluminum “Mesh” Inlays | N/A | N/A | N/A | S | | “KULLEN” Cloth Upholstery | S | S | S | N/A | | “TISTLARNA” Vinyl / Cloth Upholstery | N/A | N/A | N/A | S | | Leather Upholstery – Seating Surfaces Only | O | O | O | O | | Tilt / Telescoping Steering Column w/ Integrated Audio/Cruise Controls | S | S | S | S | | Remote, Keyless 2-step Unlock /Entry System with Tailgate Release, Approach Lighting and Alarm with Panic Button | S | S | S | S | | Follow-Me-Home Headlamps | S | S | S | S | S = STANDARD 0 = FACTORY OPTION A = ACCESSORY N/A NOT APPLICABLE STANDARD/OPTIONAL EQUIPMENT
V70
Model Year 2002 | BODY AND INTERIOR (continued) | 2.4 | 2.4T | AWD | T5 | | Digital Clock and Ambient Temperature Gauge Display | S | S | S | N/A | | Safety-Cage Passenger Compartment | S | S | S | S | | Side Impact Protection System (SIPS) | S | S | S | S | | Side Impact Air Bags – Front seats | S | S | S | S | | Inflatable Curtain (IC) – Front and Rear Seat Head Protection | S | S | S | S | | Five 3-point Seatbelts with Pyrotechnic Pretensioners, Rear with ALR Child Seat Locking Feature | S | S | S | S | | WHIPS – Whiplash Protection System/Front Seats | S | S | S | S | | Dual-threshold Driver’s Side SRS (Airbag). | S | S | S | S | | Dual-threshold Front Passenger SRS (Airbag). | S | S | S | S | | Padded Seat Restraints in all 5 Positions | S | S | S | S | | ISO-FIX – Child/baby Seat Fixation/World-Wide Standard | S | S | S | S | | Top-tether Child Seat Anchorage (3) | S | S | S | S | | Rear Door Child-proof Locks | S | S | S | S | | 8-way Adjustable Mechanical Driver / Mechanical Passenger Seat | S | N/A | N/A | N/A | | 8-way Adjustable Power Driver /Passenger Seat | N/A | O | O | S | | 8-way Adjustable Power Driver / Mechanical Passenger Seat | O | S | S | N/A | | Rearward-facing Child Auxiliary Seat -Max. capacities: 79 lbs. or 55 inches (36kg or 140 cm) | O | O | O | O | | Front Seat Storage Pockets (Leather Seats Only) | O | O | O | O | | Seat Back Storage Pockets | S | S | S | S | | Dash Mounted Cup Holder | O | O | O | O | | Two Front, Center Console Cup Holders | S | S | S | S | | Rear Armrest Mounted Dual Cup Holders (Drawer) | S | S | S | S | | Split 60/40 Folding Rear Seat with Manually Retractable Head Restraints | S | S | S | S | | Two Position Rear Backrest (load: 25°, comfort: 30°) | S | S | S | S | | Heated Front Seats (US) | O | O | O | O | | Auto-Down/Up Front Power Windows with Rear Window Deactivation Switch and Anti-Trap Feature | S | S | S | S | | Dual power outside mirrors (Heated) | S | S | S | S | | Memory for the Outside Rearview Mirrors (Included in Power Driver’s Seat – Part of Premium Package) | O | S | S | S | | Front center armrest | S | S | S | S | | Waste Bin / Bottle Holder (Rear Seat, at Rear of Console) | O | O | O | O | S = STANDARD 0 = FACTORY OPTION A = ACCESSORY N/A NOT APPLICABLE STANDARD/OPTIONAL EQUIPMENT
V70
Model Year 2002 | BODY AND INTERIOR (continued) | 2.4 | 2.4T | AWD | T5 | | Power Tailgate Lock/Unlock | S | S | S | S | | Warning or Indicator Lamps: | | | | | | - Windshield Washer Fluid Level | S | S | S | S | | - Low-Fuel Level | S | S | S | S | | - Rear Fog Lamp | S | S | S | S | | - High Beam | S | S | S | S | | - Bulb Failure | S | S | S | S | | - Cruise Control Active Indicator | S | S | S | S | | - SRS | S | S | S | S | | - Battery | S | S | S | S | | - Low Oil Pressure | S | S | S | S | | - Brake Failure | S | S | S | S | | - Parking Brake | S | S | S | S | | - ABS | S | S | S | S | | - Gear Change Indicator (Orange Arrow) | S | S | S | S | | - Low Coolant Level | S | S | S | S | | - Check Engine | S | S | S | S | | - Lambdasond | S | S | S | S | | - Service Reminder | S | S | S | S | | Immobilizer Theft Deterrent System | S | S | S | S | | Instrument Cluster with Microprocessor Control and Diagnostics: | | | | | | -Speedometer: 160 MPH (US), 240 KPH (Canada) | S | S | S | S | | - Tripmeter / Odometer | S | S | S | S | | - Tachometer: 0-7000 RPM | S | S | S | S | | - Fuel Gauge | S | S | S | S | | - Water temperature Gauge | S | S | S | S | | - Trip Computer (Includes: Digital Clock, Ambient Temperature Gauge – Celsius and Fahrenheit, Speed Warning, Driving Information) | O | O | O | S | | Security System | S | S | S | S | | - Inclination (level) sensor | A | A | A | A | | - Mass movement sensor | A | A | A | A | | - Glass break sensor | A | A | A | A | | Color-Keyed Carpet | S | S | S | S | | Plush Floor mats | S | S | S | S | | Tool kit | S | S | S | S | S = STANDARD 0 = FACTORY OPTION A = ACCESSORY N/A NOT APPLICABLE STANDARD/OPTIONAL EQUIPMENT
V70
Model Year 2002 | EXTERIOR | 2.4 | 2.4T | AWD | T5 | | Power Glass Sunroof with Slide/Tilt Function and Sliding Sun Shade with Auto Open/Close | O | S | S | S | | Color-Keyed Bumpers | S | S | S | S | | Dual Color-Keyed Power Outside Mirrors (Heated) | S | S | S | S | | Rear Window Defroster with Automatic Timer | S | S | S | S | | Vertical “Waterfall” Grille with Bright Work | S | S | S | S | | Headlight Wiper/Washer System (US) | O | O | O | O | | Headlight Wiper/Washer System (Canada) | S | S | S | S | | Rear Door Intermittent Wiper (with Automatic Function when Transmission in Reverse and Front Wipers On) | S | S | S | S | | Day Time Running Lights (DRL) | S | S | S | S | | Halogen Semi-Sealed Headlights with Replaceable Bulb | S | S | S | S | | Front Fog Lights | N/A | N/A | N/A | S | | Pre-Wired for Front Fog Lights | S | S | S | N/A | | Center Brake Light with Light-Emitting Diodes for Faster Response | S | S | S | S | | Rear Fog Light (Left Side) | S | S | S | S | | Rear Mud Flaps | A | A | A | A | | Paint: Solid | S | S | S | S | | Paint: Metallic | O | O | O | O | | Decklid / Tailgate Emblem
“V70” / “V70 2.4T” / ”V70 AWD” / “V70 T5” | S | S | S | S | | AUDIO SYSTEM | 2.4 | 2.4T | AWD | T5 | | HU-413 “Large Format” AM/FM Stereo with Full Logic (Electronic) Cassette, Dolby and Built-In 4 x 25 watt Amplifier with Six Speaker System | S | S | S | N/A | | HU-613 In-dash Single CD player, AM/FM Stereo with Full Logic Cassette, Dolby “B” Noise Reduction, 4x25 watt Amplifier, Eight Speakers (Including D-Pillar) | O | O | O | S | | HU-803 Audio Max, In-dash 4 CD Changer, AM/FM Digital Tuner, Dolby ProLogic® Surround Sound w/internal 1x25 W amplifier; 4x75 Watt external amplifier | N/A | N/A | N/A | O | | Subwoofer: 12”/150 watts – 0Not available with Versatility Pkg / Third Row Seat | O | O | O | O | | Diversity Antenna System: Glass Embedded Primary Antenna and Bumper Mounted Secondary | S | S | S | S | S = STANDARD 0 = FACTORY OPTION A = ACCESSORY N/A NOT APPLICABLE OPTIONAL EQUIPMENT PACKAGES
V70
Model Year 2002 | Premium Package (N/A-T5) The Premium Package provides all of the following amenities: | Models | | 2.4 | 2.4T | AWD | | Select Leather Seating Surfaces (avail. Separate) | X | X | X | | Leather Steering Wheel | N/A | X | X | | Simulated Wood Inlays | N/A | X | X | | Sunroof | X | STD | STD | | HU-613 Radio/CD | X | X | X | | Power Driver's Seat | X | STD | STD | | Power Passenger Seat | N/A | X | X | | Versatility Package | Models | | 2.4 | 2.4T | AWD | T5 | | Third Row/Auxiliary Seat | X | X | X | X | | Integrated Booster | X | X | X | X | | Folding Table | X | X | X | X | | Rear Trash Bin/Bottle Holder - Grocery Bag Holder deleted when combined w/ Touring Package
| X | X | X | X | | Cold Weather Package (standard in Canada) The weather Package provides the features that help take the sting out of a cold or messy day. It features: | Models | | 2.4 | 2.4T | AWD | T5 | | Heated Front Seats | X | X | X | X | | Headlamp Wiper/Washer Note: - V70 AWD comes STD with TRACS. STC is not available.
- STC is now standard on 2.4, DSTC is STD on T5
| X | X | X | X | | Touring Package The Touring Package provides features which enhance the overall driving experience: | Models | | 2.4 | 2.4T | AWD | T5 | | Grocery Bag Holder | X | X | X | X | | Laminated Glass | X | X | X | X | | Air Quality Sensor (Requires ECC) | N/A | X | X | X | | Homelink® | X | X | X | STD | | Auto-dimming Mirror | X | X | X | STD | | Trip Computer | X | X | X | STD | | Dash Cupholder | X | X | X | X | | Cargo Net Protection | X | X | X | X | | 12V Outlet | X | X | X | X | Individual Factory Options | - Metallic Paint
- Sunroof
- Leather Seating Surfaces
- Dynamic Stability Traction Control (DSTC) (2.4T - January '02 Production)
- Audio Max HU-803 In-dash 4 CD Changer (T5)
- Integrated Booster Cushions
- 16" MIMAS Alloy Wheels (2.4)
- 16" METIS Alloy Wheels (2.4T)
- 17” Wheels (2.4T, AWD, T5)
- 5-speed Automatic Transmission (2.4, T5)
- Geartronic (2.4T)
- Volvo Navigation System-VNS (2.4T, AWD, T5 – avail. Production W150/ Dec. 10th)
| |
