| While efforts have been made to assure 100% accuracy, some of the information presented here may be incorrect due to late product changes and/or specification changes that may have occurred. Production specifications are subject to change without notice. Key New Product Features
S60
MY02 Model
S60 2.4T AWD - With the introduction of the Electronically Controlled AWD, Volvo takes the next step in safety leadership. The electronically controlled system, developed with another Swedish company Haldex, opens up a host of new opportunities, including the addition of STC – and later DSTC. The electronic version of AWD will also presents Volvo the opportunity to expand beyond 2.4T to other variants and platforms in the future (the PCC which debuted last year utilizes the same system).
- The 2.4T AWD addresses all of the top reasons for purchase and will be positioned in the marketplace as Safety with Security, Peace of Mind and Dynamic Handling Characteristics, for those times when you need it most.
- The AWD sedan market continues to develop quickly and is a natural for Volvo to expand on the already extremely well received S60. Built in Ghent (along with all N.A. S60s) and available from production start, the S60 2.4T AWD features all of the 2.4T options and packages, with these upgrades:
- Exclusive Alloy Wheels: 16” ORBIT (Std.) and 17” THOR (Opt.)
- Electronically Controlled AWD
- Geartronic
- S60 AWD Emblem
- Increased chassis height (Front/Rear) 0.6 in. / 1.4 in.

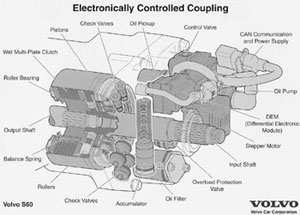

Electronically Controlled AWD - The major component of the Electronically Controlled AWD is the automatic clutch. The clutch utilizes an electronic management system and comprises of three functional parts:
- The hydraulic pump driven by the slip between the axles wheels
- The Wet Multi-plate Clutch
- The control valve with its electronics
- Inputs that control the clutch: speed of the wheels–signals from ABS sensors; throttle position; engine torque; engine speed; brake system.
- The automatic clutch is fully compatible with the ABS without freewheel or additional clutches. It connects to the vehicles electrical system and to the CAN system without the need for additional sensors.
- The unit can be viewed as a hydraulic pump, where the housing and an annular piston are connected to one shaft while the piston actuator is connected to the other (input and output).
- When speed differences occur between shafts, the hydraulic pistons begin pumping and oil flow (pressure) starts. As a piston pumps, there is virtually instant reaction with no low-speed pumping loss. The oil flows to a clutch piston, compressing the clutch pack to brake the speed differences. An electronically controlled valve regulates the oil pressure and the force on the clutch pack. The automatic clutch begins to transfer torque after a wheel angle rotation of about 10 degrees. This ensures rapid engagement of the AWD unit making it completely transparent to the customer.
- Advantages of the Electronically Controlled AWD:
 |  | - The system can accommodate wheels with different diameters, incase a temporary spare needs to be utilized. Also, a vehicle can be towed with one axle lifted as the clutch is in the "disengaged mode" (no power to the system) when the ignition key is in position 1.
- Enhanced occupant and vehicle safety: Electronically Controlled AWD is fully integrated with the brake and stability systems (STC, DSTC-W150 Production). This is made possible because the automatic clutch can be disengaged during parking maneuvers and braking. This system can be disengaged in less than 60 mille seconds when braking, which is essential to ensure vehicle stability.
- Full AWD function when the transmission is in reverse.
- Transparent actuation of the AWD, with rapid activation and deactivation when needed providing optimal traction, especially during acceleration. Virtually no ill effects of 'wind-up' are discernable during tight cornering and when executing parking maneuvers.
- Weight reduction and reduced fuel consumption are the results of the complete design of the AWD driveline. The S60 AWD weights only an additional 62 kg / 137 lbs.
Platform Introductions
- Improved throttle management for 5 cylinder turbos. The S60 will be discernibly more responsive when the accelerator is depressed which enhance the level of driving pleasure. The function is designed in a way that the driving is smooth without sacrificing low speed performance.
- Emergency Trunk Release – A bright yellow plastic handle with cord attached to the locking mechanism will be installed in every sedan to allow for easy release of the trunk lid in case of entrapment.
Mk 25 Brake System
- STC Improvements – improved engine intervention due to a more powerful processor and new algorithms (STC is now standard on 2.4, 2.4T)
- Traction Control in STC and TRACS has been improved by increasing the speed range of the system. It will regulate the system up to 75 MPH (previously 44 MPH) but has to enter the traction control mode at a speed lower than 25 MPH.
- DSTC availability with AWD – Available Dec. 10th / W150 Production
- Emergency Brake Assistance (EBA) – dramatically reduces stopping distances in panic situations. At these critical moments, there is sometimes the tendency to relax pressure off the brake pedal once ABS modulation occurs. EBA ensures that full braking power is applied.
Packages and Standard Content: - Standardized safety features and options: It is natural for Volvo to build on and take the lead in our acknowledged safety leadership. As such standard content on all variants includes a minimum of STC (Except T5 which receives DSTC)
- Sunroof: To alleviate customer and dealer confusion, beginning from start of production, Sunroof will now be standard on all 2.4T, 2.4T AWD & T5 variants. The Premium Packages have been adjusted to reflect this change. The sunroof will continue to be an option (and included in the premium package) on the 2.4
- Additional Changes include: Dash Cupholder was deleted from Touring Package and not available from the factory
- Full list of added content on the standard specification:
2.4
Satellite Controls on Steering Wheel
Cupholders - Rear Armrest
Electrical Foldable Rear Headrest
ISO-FIX Attachment Points
STC 2.4T & 2.4T AWD
Memory for Pwr. Seat and Mirror
Electrical Foldable Rear Headrest
ISO-FIX Attachment Points
STC T5
Memory for Pwr. Seat and Mirrior
Electrical Foldable Rear Headrest
ISO-FIX Attachment Points
DSTC New Feature Introductions
DVD Volvo Navigation System - The Volvo Navigation System made its debut in the MY99 S80, and since it has been incorporated on most P2 vehicles. While a convenient and worthwhile option for many, improvements have been made to the CD-based system to improve customer satisfaction and ease of operation.
- The Volvo Navigation System (VNS) is an electronic information and route guidance system that helps the driver find any destination under a variety of options (e.g. shortest route, fastest time, use of highways and toll roads). The system keeps track of the position of the vehicle using the Global Positioning Satellite (GPS) system and automatically recalculates the route if the driver goes off the system’s plan.
- The most significant improvement of VNS was the incorporation of DVD media. The previous generation VNS used CD-ROM media to store maps and data. The advantages of using DVD media are storage capacity and speed. CD-ROM based VNS would require 9 separate CDs to provide coverage in the continental United States, whereas with the DVD format, only one disc is necessary for the United States and Canada.
- Route calculation, Data retrieval, and rerouting speeds are significantly enhanced versus the CD-ROM system.
- The size of the VNS display has increased by 1", measuring 6.5 inches. This color, wide screen unit is situated at eye level so it can be read easily and quickly. When not is use the display hides discretely inside the center speaker on the dashboard.
- In addition to the steering wheel mounted controls, a hand held remote will be included with every VNS ordered as a factory option. This remote allows passengers access to the system without having to distract the driver.
Interior Changes - New Color Introductions: 417 Nautic Blue – metallic; 427 Carbon Grey – metallic; 452 Black Sapphire – metallic; 604 North Sea Blue – solid. Please consult Color Chart for model availability
- New Interior: Graphite / Indigo Leather – Cloth Upholstery (T5 only: See Color Chart for Availability). This upholstery is identical to the Graphite/Sisal except that
- Leather Handbrake will feature a visible seam on the top of the lever.
 - Interior Switch for Fuel Lid – An interior switch will be added to 2.4T, AWD, and T5 models. Eventually, 2.4 models will receive switch as a running change this year. The switch turns off a diagnostic system that detects evaporation of fuel vapor. It is expected that this switch will help mitigate false reads and incorrect illumination of check engine lights. The fuel lid will automatically relock should the vehicle exceed 4 MPH.
SPECIFICATION OVERVIEW
S60
Model Year 2002 SALES VERSION
S60 2.4 Badge “S60”
5 Cylinder, 168 HP with 170 lb. / ft. of Torque
5 Speed Manual Transmission
SIPS Structure with Side Impact Air Bags
Dual Stage Front Air Bags
IC (Inflatable Curtain)
WHIPS – Whiplash Protection Seats
Pyrotechnic Pretensioners on All Seating Positions
Stability Traction Control (STC)
Emergency Trunk Release
Electrical Foldable Rear Headrest
ISO-FIX Attachment Points
Two Integrated Cup Holders, Rear Armrest
Tilt/Telescoping Steering Wheel w/ Integrated Audio/Cruise Controls
Dual Zone Manual Climate Control
B-Pillar Rear Seat Vents
Central Locking System with Keyless Two-Step Unlock / Entry
Security System with Battery Back-up Siren
Exterior “Approach Lighting” (including mirror puddle lamps)
“Kilen” Cloth Upholstery
Manually Adjustable Driver/Passenger Seat
60/40 Split, Fold-down Rear Seats
Two Center Console Integrated Cup Holders
Auto-down/up Front Windows
Power Heated Exterior Mirrors
Coin box
Immobilizer – Rolling Code Theft Deterrent System
HU-413 Full Logic Cassette, AM/FM Stereo, w/CD Changer Control
Six Speaker Base System
Automatic Time Lock Fuel Lid
Pollen filter for passenger compartment
Tilt/Telescoping Steering Wheel
Comfort Chassis
15”x 6.5” “LYSETHIA” 9-Spoke Alloy Wheels
195/65HR15 All-Season Tires Bold Type indicates New Features SPECIFICATION OVERVIEW
S60
Model Year 2002
SALES VERSION
S60 2.4T Badge “S60 2.4T”
5 Cylinder, 197 HP with 210 lb. / ft. of Torque
Light Pressure, Intercooled Turbo
5 Speed Automatic Transmission
SIPS Structure with Side Impact Air Bags
Dual Stage Front Air Bags
IC (Inflatable Curtain)
WHIPS – Whiplash Protection Seats
Pyrotechnic Pretensioners on All Seating Positions
Stability Traction Control (STC)
Emergency Trunk Release
Electrical Foldable Rear Headrest
ISO-FIX Attachment Points
Memory – Exterior Mirrors
Dual Zone Electronic Climate Control
B-Pillar Rear Seat Vents
Central Locking System with Keyless Two-Step Unlock / Entry
Security System with Battery Back-up Siren
Exterior “Approach Lighting” (including mirror puddle lamps)
“Kilen” Cloth Upholstery
Power 8-Way Adjustable Driver’s Seat w/ Memory
Manually Adjusted Passenger Seat
60/40 Split, Fold-down Rear Seats
Two Center Console Integrated Cup Holders
Two Integrated Cup Holders, Rear Armrest
Auto-down/up Front Windows
Tilt/Telescoping Steering Wheel w/ Integrated Audio/Cruise Controls
Leather Gear Shift Knob
Power Heated Exterior Mirrors
Coin box
Immobilizer – Rolling Code Theft Deterrent System
HU-413 Full Logic Cassette, AM/FM Stereo, w/CD Changer Control
Six Speaker Base System
Automatic Time Lock Fuel Lid
Pollen filter for passenger compartment
Comfort Chassis
16”x 6.5” “MIMAS” 7-Spoke Alloy Wheels
205/55 HR 16 All-Season Tires
Bold Type indicates New Features SPECIFICATION OVERVIEW
S60
Model Year 2002
SALES VERSION
S60 2.4T AWD Badge “S60 AWD”
5 Cylinder, 197 HP with 210 lb. / ft. of Torque
Light Pressure, Intercooled Turbo
5 Speed Automatic Transmission w/ Geartronic
Electronically Controlled AWD
Electrical Foldable Rear Headrest
ISO-FIX Attachment Points
Memory – Exterior Mirrors
Stability Traction Control (STC)
Emergency Trunk Release
SIPS Structure with Side Impact Air Bags
Dual Stage Front Air Bags
IC (Inflatable Curtain)
WHIPS – Whiplash Protection Seats
Pyrotechnic Pretensioners on All Seating Positions
Dual Zone Electronic Climate Control
B-Pillar Rear Seat Vents
Central Locking System with Keyless Two-Step Unlock / Entry
Security System with Battery Back-up Siren
Exterior “Approach Lighting” (including mirror puddle lamps)
“Kilen” Cloth Upholstery
Power 8-Way Adjustable Driver’s Seat w/ Memory
Manually Adjusted Passenger Seat
60/40 Split, Fold-down Rear Seats
Two Center Console Integrated Cup Holders
Two Integrated Cup Holders, Rear Armrest
Auto-down/up Front Windows
Tilt/Telescoping Steering Wheel w/ Integrated Audio/Cruise Controls
Leather Gear Shift Knob
Power Heated Exterior Mirrors
Coin box
Immobilizer – Rolling Code Theft Deterrent System
HU-413 Full Logic Cassette, AM/FM Stereo, w/CD Changer Control
Six Speaker Base System
Automatic Time Lock Fuel Lid
Pollen filter for passenger compartment
Comfort Chassis
16”x 6.5” “ORBIT” 7-Spoke Alloy Wheels
205/55 HR 16 All-Season Tires Bold Type indicates New Features
SPECIFICATION OVERVIEW
S60
Model Year 2002
SALES VERSION
S60 T5 Badge “S60 T5”
5 Cylinder, 247 HP with 243 lb. / ft. of Torque
High Pressure, Intercooled Turbo
5 Speed Manual Transmission
Dynamic Stability Traction Control (DSTC)
SIPS Structure with Side Impact Air Bags
Dual Stage Front Air Bags
IC (Inflatable Curtain)
WHIPS – Whiplash Protection Seats
Pyrotechnic Pretensioners in All Seating Positions
Emergency Trunk Release
Dual Zone Electronic Climate Control
Electrical Foldable Rear Headrest
ISO-FIX Attachment Points
Memory – Exterior Mirrors
B-Pillar Rear Seat Vents
Trip Computer
Central Locking System with Keyless Two-Step Unlock / Entry
Security System with Battery Back-up Siren
Exterior “Approach Lighting” (including mirror puddle lamps)
Homelink® Garage Door & Remote Lighting System
Immobilizer – Rolling Code Theft Deterrent System
“Svangen” Cloth/Vinyl Upholstery
Sport Seats w/ Pwr 8-Way Adj. Driver (w/ Memory) & Passenger Seat
60/40 Split, Fold-down Rear Seats
Two Center Console Integrated Cup Holders
Two Integrated Cup Holders, Rear Armrest
Auto-down/up Front Windows
Power Heated Exterior Mirrors
Spoiler Mounted Front Fog Lights
Auto Dimming Interior Rearview Mirror
Tilt/Telescoping, Leather Wrapped Steering
Wheel w/ Integrated Audio/ Cruise Controls
Leather Wrapped Gear Shift
Leather Parking Brake Cover
Aluminum ‘Mesh’ Inlays
Coin box
HU-613 Single CD, Full Logic Cassette, AM/FM Stereo, w/CD
Changer Control, Eight Speaker Base System
Automatic Time Lock Fuel Lid
Pollen filter for passenger compartment
Comfort Chassis
16” x 7” “SIRIUS” 5-spoke Alloy Wheels
215/55 HR 16 All-Season Tires Bold Type indicates New Features STANDARD/OPTIONAL EQUIPMENT
S60
Model Year 2002 | DRIVETRAIN | 2.4 | 2.4T | AWD | T5 | | B5244S, ULEV Engine: Transversely Mounted, 2.4 liter, Naturally Aspirated, All Alloy, 5 Cylinder, DOHC 20 Valve (Solid Tappets), Bosch ME7 Engine Management System. 168 HP at 5,900 RPM, 170 lb./ft @ 4,500 RPM | S | N/A | N/A | N/A | | B5244T3, LEV Engine: Transversely Mounted, 2.4 liter, Light-pressure Turbocharged and Intercooled, All Alloy, 5 Cylinder, DOHC 20 Valve (Solid Tappets), Bosch ME7 Engine Management System. 197 HP at 6,000 RPM, 210 lb./ft @ 1,800–5,000 RPM | N/A | S | S | N/A | | B5234T3, LEV Engine: Transversely Mounted, 2.3 liter, High-pressure Turbocharged and Intercooled, All Alloy, 5 Cylinder DOHC 20 Valve (Solid Tappets), Bosch ME7 Engine Management System. 247 HP at 5,200 RPM, 243 lb./ft @ 2,400-5,200 RPM | N/A | N/A | N/A | S | | M56L 5-Speed Manual Gearbox | S | N/A | N/A | S | | AW55-50 5-speed, Microprocessor-Controlled Automatic with Winter Mode Selector Switch. | O | S | N/A | N/A | | AW55-50 5-speed, Microprocessor-Controlled Automatic with Geartronic and Winter Mode Selector Switch. | N/A | O | S | O | | Electronically Controlled AWD System | N/A | N/A | S | N/A | | PremAir® Treated Radiator | S | S | S | S | | BRAKES AND SUSPENSION | | | Power Assisted, 4 Wheel Disc Brakes | S | S | S | S | | 4 Channel, Anti-lock Braking System (ABS), Electronically Controlled (Continental/Teves) w/ Electronic Brake Distribution (EBD). | S | S | S | S | | 15” Wheel Brake System (11.3” Front/Rear discs, 286 mm /288 mm) with Asbestos Free Brake Pads. | S | S | S | N/A | | 16” Wheel Brake System (12”/11.3” Front/Rear Discs, 305 mm /288 mm) with Asbestos Free Brake Pads. | N/A | N/A | N/A | S | | ‘Comfort’ Chassis Independent Front McPherson Strut Suspension with: Hydraulic Shocks, 23.5 mm Stabilizer Bar and Asymmetrically Mounted Front Springs | S | S | S | S | | Sport Chassis Independent Front MacPherson Strut Suspension with: Hydraulic Shocks Absorbers, 24mm Stabilizer Bar and Asymmetrically Mounted Front Springs; Multi Link Rear Suspension with Hydraulic Shock Absorbers, 21 mm stabilizer bar and Coil Springs | N/A | N/A | N/A | O | | Rack and Pinion Steering | S | S | S | S | S = STANDARD O = FACTORY OPTION A = ACCESSORY N/A = NOT AVAILABLE STANDARD/OPTIONAL EQUIPMENT
S60
Model Year 2002 | BRAKES AND SUSPENSION | 2.4 | 2.4T | AWD | T5 | | 15” x 6.5“ “LYSITHEA” 9-Spoke Alloy Wheels (43 mm Offset) w/ Michelin MXV4+ 195/65HR15 All-Season Tires | S | N/A | N/A | N/A | | 16” x 6.5 “ MIMAS 7-Spoke Alloy Wheels (43 mm Offset) w/ Michelin MXV4+ 205/55HR16 All-Season Tires | O | S | N/A | N/A | | 16” x 6.5” ORBIT 7-Spoke Alloy Wheels (43 mm Offset) w/ Michelin MXV4+ 205/55HR16 All-Season Tires | N/A | N/A | S | N/A | | 16” x 7“ SIRIUS 5-Spoke Alloy Wheels (49 mm offset) with Continental Touring Eco+ 215/55HR16 All-Season Tires | N/A | O | N/A | S | | 17” x 7.5“ TETHYS 17-Spoke Alloy Wheels (49 mm Offset) w/ Pirelli P6 235/45HR17 All-Season Tires | N/A | O | N/A | O | | 17” x 7.5” THOR 7-Spoke Alloy Wheels (49mm Offset) w/ Pirelli P6 235/45HR17 All-Season Tires | N/A | N/A | O | N/A | | Tempa Spare tire | S | S | S | S | | BODY AND INTERIOR | | | Interior Courtesy Lights with Delay "Dim Down" and “Auto Brighten-Up” | S | S | S | S | | 4 Reading Lights, 2 Front / 2 Rear | S | S | S | S | | 2 Foot-Well Door Entry Lights | S | S | S | S | | Illuminated Front Driver and Passenger Vanity Mirror | S | S | S | S | | Luggage Compartment Light | S | S | S | S | | Cruise Control | S | S | S | S | | Replaceable Pollen / Dust Filter for Interior | S | S | S | S | | Manually Controlled Air Conditioning | S | N/A | N/A | N/A | | Electronically Controlled Automatic Climate System | N/A | S | S | S | | B-Pillar Adjustable Rear Seat Vents | S | S | S | S | | Emergency Trunk Release | S | S | S | S | | Leather Wrapped Steering wheel | O | O | O | S | | Tilt / Telescoping Steering Wheel w/ Integrated Audio/Cruise Controls | S | S | S | S | | Leather Parking Brake Cover | N/A | N/A | N/A | S | | “Sport Shifter” Gear Shift Lever with Leather Knob (Manual Gearbox Only) | N/A | N/A | N/A | S | | Leather Gear Shift Knob (Auto or Manual) | A | S | S | S | | Remote, Keyless 2-step Unlock /Entry System with Tailgate Release, Approach Lighting and Alarm with Panic Button | S | S | S | S | | Immobilizer Theft Deterrent System | S | S | S | S | | Follow-Me-Home Headlamps | S | S | S | S | | Security System | S | S | S | S | S = STANDARD O = FACTORY OPTION A = ACCESSORY N/A = NOT AVAILABLE STANDARD/OPTIONAL EQUIPMENT
S60
Model Year 2002 | BODY AND INTERIOR (cont'd) | 2.4 | 2.4T | AWD | T5 | | Instrument Cluster with Microprocessor and Diagnostics: Control | | | | | | Speedometer: 160 MPH (US), 240 KPH (Canada) | S | S | S | S | | – Tripmeter / Odometer | S | S | S | S | | – Tachometer: 0-7000 RPM | S | S | S | S | | – Fuel Gauge | S | S | S | S | | – Water Temperature Gauge | S | S | S | S | | – Trip computer (Includes: Digital Clock, Ambient Temperature Gauge – Celsius and Fahrenheit, Speed Warning, Driving Information) | O | O | O | S | | Digital Clock and Ambient Temperature Gauge Display | S | S | S | S | | Auto Dimming Interior Rearview Mirror | O | O | O | S | | Safety-Cage Passenger Compartment | S | S | S | S | | Side Impact Protection System (SIPS) | S | S | S | S | | Side Impact Air Bags – Front seats | S | S | S | S | | Inflatable Curtain (IC) – Front and Rear Seat Head Protection | S | S | S | S | | Five 3-point Seatbelts with Pyrotechnic Pretensioners, Rear with ALR Child Seat Locking Feature | S | S | S | S | | WHIPS – Whiplash Protection System/Front Seats | S | S | S | S | | Dual-threshold Driver’s Side SRS (Airbag). | S | S | S | S | | Dual-threshold Front Passenger SRS (Airbag). | S | S | S | S | | Electrical Foldable Rear Head Restraints | S | S | S | S | | Padded Head Restraints in all 5 Positions | S | S | S | S | | ISO-FIX – Child/baby Seat Fixation/World-Wide Standard | S | S | S | S | | Top-tether Child Seat Anchorage (3) | S | S | S | S | | Rear Door Child-proof Locks | S | S | S | S | | 8-way Adjustable Power Driver /Passenger Seat | N/A | O | O | S | | 8-way Adjustable Power Driver / Mechanical Passenger seat | O | S | S | N/A | | Front Seat Storage Pockets (Leather and Nindigen Only) | O | O | O | O | | Seat Back Storage Pockets | S | S | S | S | | Dash Mounted Cup Holder | N/A | N/A | N/A | N/A | | Two Front, Center Console Covered Cup Holders | S | S | S | S | | Rear, Armrest Mounted Dual Cup Holders (Drawer) | S | S | S | S | | Split 60/40 Folding Rear Seat | S | S | S | S | S = STANDARD O = FACTORY OPTION A = ACCESSORY N/A = NOT AVAILABLE STANDARD/OPTIONAL EQUIPMENT
S60
Model Year 2002 | BODY AND INTERIOR (cont'd) | 2.4 | 2.4T | AWD | T5 | | Heated Front Seats (US) | O | O | O | O | | Heated Front Seats (Canada) | S | S | S | S | | Auto-Down/Up Front Power Windows with Rear Window with Rear Window Deactivation Switch and Anti-Trap Feature | S | S | S | S | | Dual power outside mirrors | S | S | S | S | | Memory for outside Mirrors | N/A | S | S | S | | Front center armrest | S | S | S | S | | Power Trunk Lock/Unlock | S | S | S | S | | Warning or Indicator Lamps: | | - Windshield Washer Fluid Level | S | S | S | S | | - Low-Fuel Level | S | S | S | S | | - Rear Fog Lamp | S | S | S | S | | - High Beam | S | S | S | S | | - Bulb Failure | S | S | S | S | | - Cruise Control Active Indicator | S | S | S | S | | - SRS | S | S | S | S | | - Battery | S | S | S | S | | - Low Oil Pressure | S | S | S | S | | - Brake Failure | S | S | S | S | | - Parking Brake | S | S | S | S | | - ABS | S | S | S | S | | - Gear Change Indicator (Orange Arrow) | S | S | S | S | | - Low Coolant Level | S | S | S | S | | - Check Engine | S | S | S | S | | - Lambdasond | S | S | S | S | | - Service Reminder | S | S | S | S | | Aluminum Mesh Inlays | N/A | N/A | N/A | S | | Simulated Wood Inlays Trim for Glovebox and Front/Rear Doors | N/A | O | O | N/A | | Leather Seating Surface *Select Leather *Sport Leather | O N/A | O N/A | O N/A | N/A O | | Leather / Textile Seating – “Nidigen” (Exclusive to particular exterior colors) *Graphite / Sisal *Graphite / Indigo | N/A | N/A | N/A | O | | Color-Keyed Carpet | S | S | S | S | | Grocery Bag Holder | O | O | O | O | | Textile Floor mats (4 total) | S | S | S | S | | Tool kit | S | S | S | S | S = STANDARD O = FACTORY OPTION A = ACCESSORY N/A = NOT AVAILABLE STANDARD/OPTIONAL EQUIPMENT
S60
Model Year 2002 | EXTERIOR | 2.4 | 2.4T | AWD | T5 | | Power Glass Sunroof with Slide/Tilt Function and Sliding Sun Shade with Auto Open/Close | O | S | S | S | | Color-Keyed Bumpers | S | S | S | S | | Dual Color-Keyed Power Outside Mirrors (Heated) | S | S | S | S | | Rear Window Defroster with Automatic Timer | S | S | S | S | | Vertical Grille with Large, Rectangle, Black Squares with Bright Work Around the Perimeter | S | S | S | S | | Headlight Wiper/Washer System (US) | O | O | O | O | | Headlight Wiper/Washer System (Canada) | S | S | S | S | | Day Time Running Lights (DRL) | S | S | S | S | | Halogen Semi-Sealed Headlights with Replaceable Bulb | S | S | S | S | | Front Fog Lights | N/A | N/A | N/A | S | | Center Brake Light with Light-Emitting Diodes for Faster Response | S | S | S | S | | Rear Fog Light | S | S | S | S | | 5 MPH Bumpers, Front and Rear (Fed.) (2.5 MPH-California) | S | S | S | S | | Large Protective Body Side Molding | S | S | S | S | | Rear Mud Flaps | N/A | N/A | N/A | N/A | | Paint: Solid | S | S | S | S | | Paint: Metallic | O | O | O | O | | Decklid Emblem “S60” / “S60 2.4T” / “S60 AWD” / “S60 T5” | S | S | S | S | | AUDIO SYSTEM | 2.4 | 2.4T | AWD | T5 | | HU-413 “Large Format” AM/FM Stereo with Full Logic (Electronic) Cassette, Dolby and Built-In 4 x 25 watt Amplifier with Six Speaker System | S | S | S | N/A | | HU-613 In-dash Single CD player, AM/FM Stereo with Full Logic Cassette, Dolby “B” Noise Reduction, 4x25 watt Amplifier, 8 Speaker System | O | O | O | S | | HU-803 In-dash 4 CD Changer, AM/FM Digital Tuner, Dolby ProLogic® Surround Sound w/internal 1x25 W amplifier; 13 Speakers total; 4x75 Watt amplifier | N/A | N/A | N/A | O | | Diversity Antenna System: Glass Embedded Primary Antenna and Bumper Mounted Secondary | S | S | S | S | S = STANDARD O = FACTORY OPTION A = ACCESSORY N/A = NOT AVAILABLE OPTIONAL EQUIPMENT PACKAGES
S60
Model Year 2002 | Premium Package (N/A-T5) The Premium Package provides all of the following amenities: | Models | | 2.4 | 2.4T | AWD | | Sunroof | X | STD | STD | Leather Seating Surfaces
(Avail. Separate) | X | X | X | | Leather Steering Wheel | N/A | X | X | | Simulated Wood Inlays | N/A | X | X | | Sunroof | X | X | X | | HU-613 Radio/CD | X | X | X | | Power Driver's Seat | X | X | X | | Power Passenger Seat | N/A | X | X | | Cold Weather Package (standard in Canada) The weather Package provides the features that help take the sting out of a cold or messy day. It features: | Models | | 2.4 | 2.4T | AWD | T5 | | Heated Front Seats | X | X | X | X | | Headlamp Wiper/Washer Note: - STC is Standard on 2.4, 2.4T
- DSTC is STD on T5
- DSTC available with S60 AWD beg wk 50
| X | X | X | X | | Touring Package The Touring Package provides features which enhance the overall driving experience: | Models | | 2.4 | 2.4T | AWD | T5 | | Grocery Bag Holder | X | X | X | X | | Laminated Glass | X | X | X | X | | Air Quality Sensor (Requires ECC) | N/A | X | X | X | | Homelink® | X | X | X | STD | | Auto-dimming Mirror | X | X | X | STD | | Trip Computer | X | X | X | STD | Individual Factory Options | - Metallic Paint
- Sunroof (2.4 only, std on 2.4T, 2.4T AWD & T5)
- Leather Seating Surfaces
- Leather – Textile Seating (T5 – Limited to Certain Exterior Colors)
- HU-803 Audio Max In-dash 4 CD Changer with Dolby Surround Sound (T5)
- 16” Wheels (2.4, 2.4T)
- 17” Wheels (2.4T, AWD, T5)
- Sport Suspension (T5)
- 5-speed Geartronic Automatic Transmission (2.4T)
- DSTC (2.4T, AWD) – Available Production W150 / Dec. 10th)
- Volvo Navigation System-VNS (2.4T, AWD, T5 – avail. Production W150/ Dec. 10th)
| |
